Your senior engineers spend hours every week red-lining PDFs for missing keynotes, schedule mismatches, and coordination gaps. If a senior engineer spends just 10% of their time on drawing QA, that's the equivalent of $40–50K a year in billable capacity. RedMark scans your full drawing set and flags the errors before a senior engineer ever opens the file.
Your AI checks the documentation. Your engineers check the engineering.
And it gets worse — coordination gaps cause downstream rework, RFIs, and the dreaded Million Dollar Typo.
Drag and drop your full mechanical, electrical, and P&ID drawing sets — plans, schedules, legends, submittals. No CAD plugin, no Revit integration.
Custom OCR + computer vision trained on tens of thousands of M&E drawings + a reasoning layer encoded with engineering rules. Cross-checks plans against schedules, electrical against mechanical.

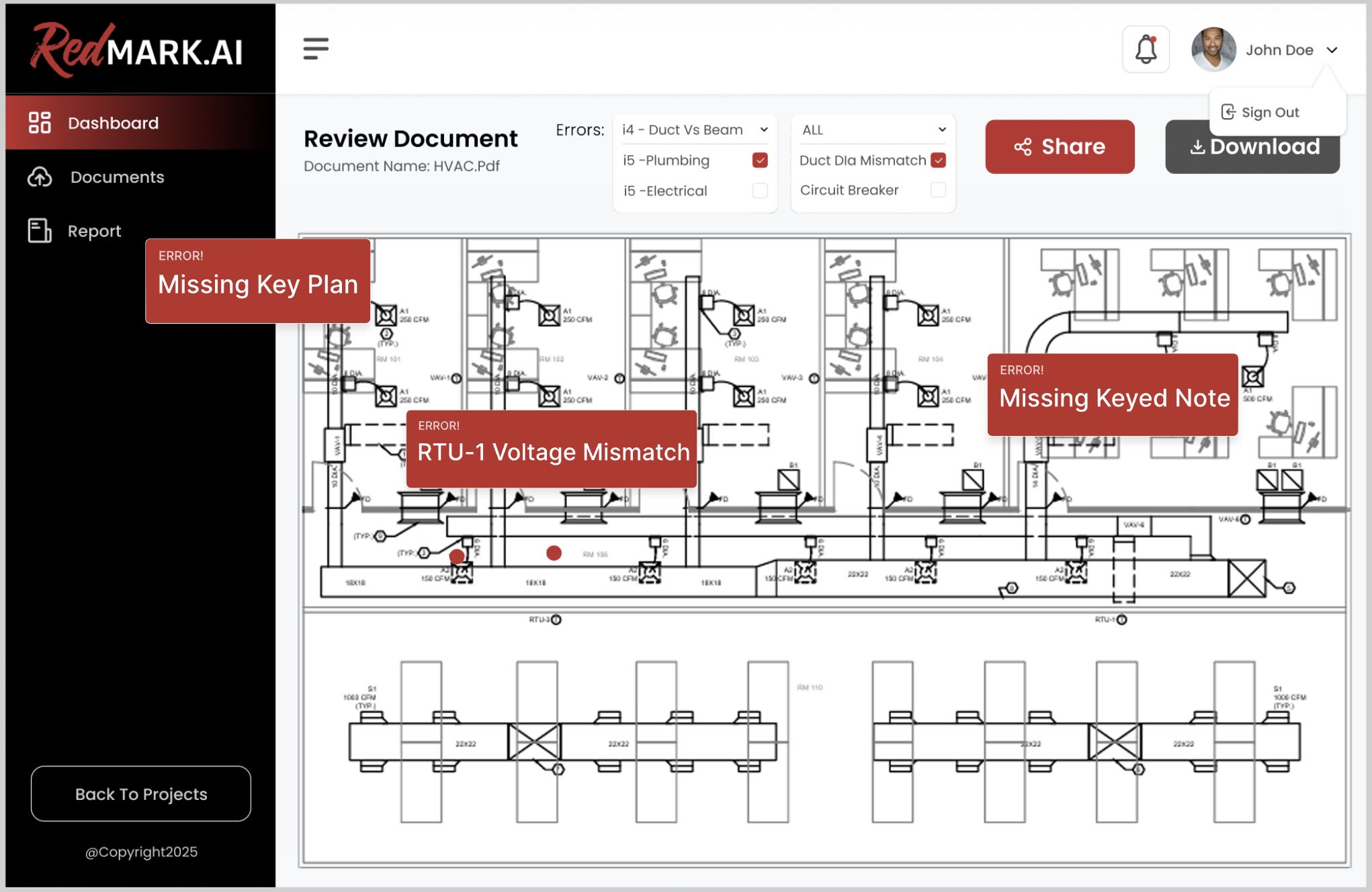

Provides an issues list and marked-up drawings. The issues list exports to Excel, and the drawings come back as PDFs with the markups on them.
A sample below — filter the full library on the product page.
Verifies equipment on the plan exists on the schedules — and vice versa.
Catches circuit sizes and voltage mismatches between mechanical equipment and electrical panel schedules.
Every piece of mechanical equipment that needs power must appear on the electrical power plan.
Flags keyed notes on the plan missing from the list — and notes on the list that appear nowhere on the drawing.
Every instrument tag on the P&ID must have a complete entry in the instrument list.
Matches hardware sets in the door schedule against the sets called out in the specification.
Recover 15–20% of senior margin lost to manual QA. Reduce RFI exposure and Million Dollar Typo risk. Enable greater efficiency with existing staff.
Get the ROI breakdownStandardise QA across every project. PDF-native — nothing to install and no change to how your engineers already work. Catch coordination errors before submittal.
See the platformStop manually finding every piece of equipment and keyed note, and prevent your eyes from glazing over after an hour of QA. Spend your time engineering.
Get a free drawing auditAES-256 encryption at rest. TLS 1.3 in transit. Only minimal, context-free metadata is ever sent to an LLM — your drawings, title blocks, company names, and project details are never transmitted. Enterprise deployments with contractual no-training guarantees.
Read our security model25+ years across MEP and manufacturing. 3M. National Laboratories. Hundreds of complex projects.
20 years building production AI. Texas Instruments. AutonomIQ (acquired by Sauce Labs).
30+ years in enterprise SaaS. Procore. NetSuite. Object Design. Lombardi.
Upload 5 sheets from a recent project. We'll return a RedMark Report inside 48 hours showing exactly what your manual QA missed. Free, no obligation.
